Air compressors are essential tools used across various industries, from automotive to manufacturing. Understanding how an air compressor pump works can help you choose the right model and maintain it effectively. This article will explore the principles, types, components, and applications of air compressor pumps in detail.
An air compressor pump is designed to convert power (usually from an electric motor or gasoline engine) into potential energy stored in compressed air. This compressed air can be used for various applications, including powering tools, inflating tires, and even in HVAC systems. The mechanics of how these pumps operate is both fascinating and crucial for their effective use.
Basic Principles of Air Compression
What is Air Compression?
Air compression involves reducing the volume of air, thereby increasing its pressure. According to Boyle’s Law, if the temperature remains constant, the pressure of a gas is inversely proportional to its volume. Thus, as the volume decreases, the pressure increases.
The Process of Air Compression
Intake: Ambient air is drawn into the pump.
Compression: The air is compressed, which reduces its volume and increases its pressure.
Storage: The high-pressure air is stored in a tank for later use.
Release: When needed, the compressed air is released for various applications.
Types of Air Compressor Pumps
Air compressor pumps can be categorized based on their working mechanism. The two primary types are positive displacement pumps and dynamic pumps.
1. Positive Displacement Pumps
These pumps work by trapping a fixed volume of air and then reducing its volume, which increases its pressure. Positive displacement pumps are the most common type of air compressor and are further divided into:

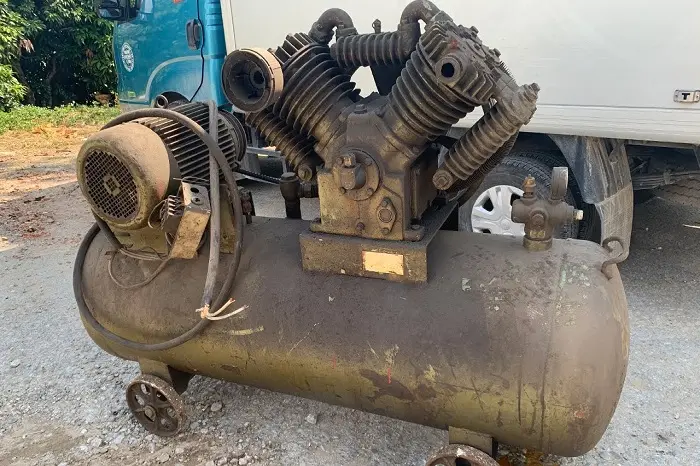

Reciprocating Air Compressors
How They Work: These compressors use a piston within a cylinder. As the piston moves down, it creates a vacuum that draws in air. When the piston moves up, it compresses the air.
Applications: Ideal for applications requiring high pressure, such as pneumatic tools and spray painting.
Rotary Screw Compressors
How They Work: These compressors utilize two interlocking helical screws. As the screws rotate, they trap and compress air. This type offers continuous airflow.
Applications: Common in industrial settings for powering large machines or processes.
Diaphragm Compressors
How They Work: These compressors use a flexible diaphragm that moves up and down to create a vacuum and compress air. They are typically used for specific applications requiring oil-free air.
Applications: Often found in medical and laboratory settings.
2. Dynamic Pumps
Dynamic pumps compress air by imparting velocity to it, which is then converted to pressure. The most common type is:
Centrifugal Compressors
How They Work: These compressors use a rotating impeller to increase the velocity of air. The high-velocity air is then slowed down in a diffuser, converting velocity into pressure.
Applications: Widely used in large-scale industrial applications, such as gas turbines and refrigeration.
Components of an Air Compressor Pump
Understanding the key components of an air compressor pump helps in grasping how it operates.
1. Motor
The motor provides the necessary power to the pump. It can be electric, gasoline, or diesel, depending on the application and mobility requirements.
2. Air Intake Filter
The air intake filter cleans the air before it enters the pump. This component is crucial for maintaining the integrity of the pump and ensuring efficient operation.
3. Compression Chamber
This is the heart of the compressor where air compression occurs. It can be a cylinder (in reciprocating compressors) or a cavity (in rotary compressors).
4. Piston or Rotors
In reciprocating compressors, the piston moves up and down to compress air. In rotary compressors, interlocking rotors achieve the same result through rotation.
5. Storage Tank
The storage tank holds the compressed air until it is needed. This tank helps maintain consistent pressure and provides a buffer for tools requiring bursts of air.
6. Pressure Switch
The pressure switch automatically turns the compressor on and off based on the tank pressure, ensuring that the tank maintains a preset level of pressure.
7. Regulator and Gauge
The regulator controls the output pressure of the compressed air, while the gauge displays the current pressure level. Together, they ensure that air is supplied at the required pressure.
How Air Compressor Pumps Operate
The Compression Cycle
The operation of an air compressor can be divided into several key phases:
Intake Phase:
The motor powers the pump, creating suction that draws in ambient air through the intake filter.
For reciprocating compressors, the piston moves down, creating a vacuum. For rotary compressors, the rotors rotate to draw in air.
Compression Phase:
In reciprocating pumps, the piston moves upward, compressing the air in the cylinder.
In rotary pumps, the air is trapped between the rotors and the housing, and as the rotors turn, the volume decreases, increasing the pressure.
Discharge Phase:
Once the desired pressure is reached, the compressed air is discharged into the storage tank.
In reciprocating compressors, a discharge valve opens to allow air into the tank. In rotary compressors, the compressed air flows directly into the tank.
Pressure Regulation:
The pressure switch monitors the tank pressure. When it reaches a preset level, the switch turns off the motor. When the pressure drops below a certain level, the switch turns the motor back on.
Cooling Systems
Air compression generates heat, which can affect performance and longevity. Most compressors include cooling systems, such as:
Air-Cooled: Uses ambient air to cool the compressor.
Water-Cooled: Circulates water through cooling jackets to dissipate heat.
Maintenance of Air Compressor Pumps
Proper maintenance extends the life of your air compressor pump and ensures optimal performance. Here are key maintenance tips:
1. Regular Oil Changes
For oil-lubricated compressors, changing the oil regularly prevents wear and tear on moving parts.
2. Clean Filters
Regularly check and clean air intake filters to prevent dirt and debris from entering the pump.
3. Drain the Tank
Condensation can build up in the storage tank, leading to rust. Regularly drain the tank to remove moisture.
4. Inspect Hoses and Fittings
Check hoses and fittings for leaks or wear. Replace any damaged parts immediately.
5. Monitor Pressure Levels
Ensure that pressure levels are within the manufacturer’s specifications to avoid overworking the pump.
Applications of Air Compressor Pumps
Air compressor pumps are versatile and used in numerous applications:
1. Automotive
Used for inflating tires, powering pneumatic tools, and paint spraying.
2. Construction
Powering nail guns, jackhammers, and other heavy machinery.
3. HVAC Systems
Providing compressed air for heating and cooling systems.
4. Manufacturing
Used in assembly lines for powering tools and machinery.
5. Medical
Supplying air for respiratory devices and other medical equipment.
Conclusion
Understanding how an air compressor pump works is essential for selecting the right model for your needs and maintaining it effectively. By grasping the principles of air compression, the types of pumps available, their components, and their applications, you can make informed decisions that enhance performance and efficiency.
