Air compressors are powerful tools used across various industries, from construction to manufacturing, and even in home workshops. One of their most critical components is the air compressor regulator. This device is essential for controlling the pressure of compressed air to suit specific applications. Understanding how it works and why it’s important can improve the efficiency, safety, and longevity of your air compressor system. Let’s dive into the details.
Introduction to Air Compressor Regulators
An air compressor regulator is a vital device designed to control and adjust the pressure of compressed air flowing from the compressor to connected tools and equipment. Its purpose is to deliver air at a consistent pressure level, suitable for the task at hand. Without a regulator, air pressure would be erratic, potentially leading to inefficiency or damage to pneumatic tools.
Key Functions of an Air Compressor Regulator
Ensuring Consistent Air Pressure
One of the regulator’s primary roles is to provide consistent air pressure. Different tools and processes require varying levels of pressure for optimal performance. For instance, a pneumatic drill might need higher pressure than a paint sprayer. By setting the regulator to the required PSI (pounds per square inch), users ensure the air supply meets specific tool needs, avoiding over- or under-performance.
Protecting Tools and Equipment
Excessive air pressure can damage sensitive pneumatic tools. Components such as seals, valves, and hoses may wear out prematurely under high pressure, leading to breakdowns and costly repairs. The regulator prevents this by capping the air pressure to a safe, predetermined level, extending the life of your equipment.
Enhancing Safety
Safety is a significant concern when working with compressed air. High-pressure air can cause accidents or damage if not properly controlled. The regulator minimizes these risks by ensuring that pressure levels are appropriate and safe for both tools and users. This is especially important in environments where multiple tools are powered simultaneously.
How Does an Air Compressor Regulator Work?

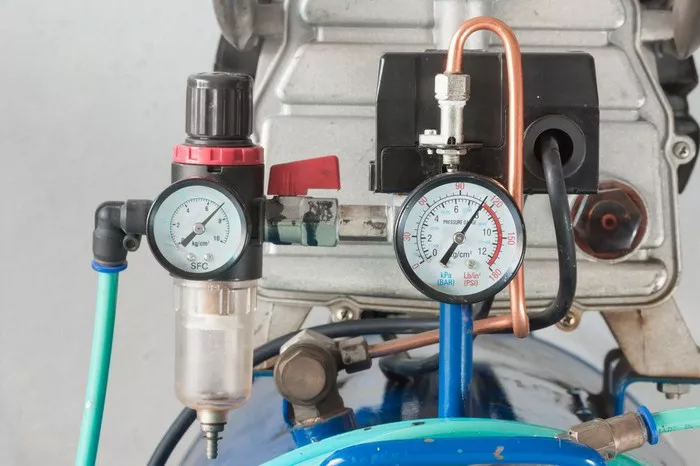

The air compressor regulator functions as a gatekeeper between the air tank and the tools. It uses mechanical components to manage air pressure, adjusting it as needed to match the tool’s requirements. Here’s how it operates:
Inlet and Outlet Ports: Compressed air flows from the tank through the regulator’s inlet port and exits through the outlet port to the tool.
Adjustment Knob: Users control the pressure by turning the adjustment knob. Rotating it clockwise increases pressure, while turning it counterclockwise decreases it.
Diaphragm and Spring Mechanism: Inside the regulator, a diaphragm and spring work together to control the airflow. The spring tension determines the maximum pressure allowed to pass through.
Pressure Gauge: A pressure gauge is typically attached to display the current pressure level, helping users monitor and adjust as necessary.
Types of Air Compressor Regulators
Standard Regulators
These are the most common type, suitable for general-purpose applications. They allow users to manually adjust the pressure using a knob and are reliable for single-tool setups.
Precision Regulators
Precision regulators are designed for tasks requiring highly accurate pressure control, such as laboratory experiments or delicate assembly work. They provide finer adjustments compared to standard regulators.
Flow Regulators
Flow regulators are a variation that controls not just pressure but also the volume of air delivered. They are ideal for applications where both pressure and airflow must be maintained at specific levels.
Benefits of Using a Regulator
Improved Efficiency
Regulating air pressure ensures tools receive just the right amount of air, optimizing their performance. This efficiency translates into faster task completion and reduced energy consumption.
Reduced Wear and Tear
By delivering consistent air pressure, regulators minimize stress on pneumatic tools. This reduces maintenance needs and prolongs the life of your equipment.
Energy Savings
Over-pressurizing tools wastes energy and increases operational costs. A properly set regulator helps conserve energy by preventing unnecessary air compression.
Versatility Across Applications
A regulator allows a single air compressor to power various tools, each requiring different pressure levels. This adaptability makes air compressors more versatile in multi-tool setups.
How to Use an Air Compressor Regulator Effectively
Identify the Required Pressure
Determine the PSI requirements for your tool or task. This information is usually provided in the tool’s manual or specifications.
Adjust the Regulator Knob
Turn the adjustment knob to set the desired pressure. Always make adjustments while the compressor is running and observe the pressure gauge for accuracy.
Test the Setup
Before starting your task, test the tool at the set pressure to ensure it functions correctly. Adjust the regulator as needed for optimal performance.
Monitor Pressure Levels
Regularly check the pressure gauge during operation to ensure the regulator maintains the correct settings. Sudden drops or spikes might indicate a problem with the regulator or compressor system.
Troubleshooting Common Regulator Issues
Inconsistent Pressure Output
This issue can arise from a faulty diaphragm, dirt buildup, or worn-out components. Regular cleaning and maintenance can resolve minor issues, but severe damage might require replacement.
Regulator Leaks
Air leaks around the regulator could indicate loose fittings or damaged seals. Tightening connections or replacing seals usually fixes this problem.
Difficulty Adjusting Pressure
If the adjustment knob is hard to turn or unresponsive, the internal spring or mechanism may be damaged. Inspecting and replacing these parts can restore functionality.
Choosing the Right Regulator for Your Air Compressor
When selecting a regulator, consider the following factors:
Pressure Range: Ensure the regulator supports the PSI range required for your tools.
Flow Capacity: Check that the regulator can handle the airflow volume (CFM) of your compressor.
Durability: Look for regulators made of high-quality materials, especially for industrial or heavy-duty use.
Ease of Use: Choose a regulator with clear markings and an intuitive design for simple adjustments.
Maintenance Tips for Air Compressor Regulators
Regular Cleaning: Dust and debris can clog the regulator. Clean it periodically to maintain efficiency.
Inspect Seals: Check for wear and replace seals as needed to prevent leaks.
Lubricate Moving Parts: Apply appropriate lubricants to ensure smooth operation of the adjustment knob and internal components.
Monitor Performance: Pay attention to any changes in pressure output or responsiveness and address issues promptly.
Conclusion
An air compressor regulator is a critical component that enhances the efficiency, safety, and versatility of your compressed air system. By controlling and maintaining the correct air pressure, it protects tools, ensures consistent performance, and saves energy. Understanding its functions, types, and maintenance requirements can help you get the most out of your air compressor and extend the life of your equipment. Whether you’re a professional or a DIY enthusiast, mastering the use of a regulator is key to achieving optimal results.
