Air compressors are a vital component of modern diesel engines, responsible for supplying compressed air to power various vehicle systems, such as the air brakes, suspension, and even some engine management functions. In this article, we will explore the location of the air compressor on a PACCAR engine, along with its importance, types, and common maintenance practices.
Understanding PACCAR Engines
PACCAR is one of the leading manufacturers of diesel engines, commonly used in heavy-duty trucks such as Peterbilt, Kenworth, and DAF vehicles. PACCAR engines, known for their durability and performance, are designed with advanced features to optimize power output, fuel efficiency, and longevity. These engines typically feature a complex arrangement of components, including the turbocharger, fuel injection system, and, of course, the air compressor.
PACCAR engines, like most diesel engines, are equipped with an air compressor to ensure proper functioning of air-driven systems. But where exactly is the air compressor located on a PACCAR engine? Let’s dive into this question and also look at the role the air compressor plays in the overall system.
The Role of the Air Compressor in a PACCAR Engine
Before pinpointing the exact location of the air compressor, it’s important to understand its function. The primary role of the air compressor on a diesel engine like PACCAR’s is to generate compressed air. This air is essential for several critical functions, including:
Air Brakes: Compressed air is used to operate the vehicle’s braking system, which is a common feature in heavy-duty trucks.
Engine Components: Certain engine functions, such as the operation of valves or turbocharger systems, can be powered or controlled by compressed air.
Cabin Suspension and Comfort Systems: Some PACCAR vehicles use compressed air to power suspension systems that provide a smoother ride for drivers.
Starting the Engine: Air compressors provide the initial push of compressed air needed to start the engine, particularly in cold-weather conditions.
Without a functioning air compressor, the vehicle could experience issues ranging from braking failure to problems with starting the engine.
Location of the Air Compressor on a PACCAR Engine
The air compressor on a PACCAR engine is typically mounted on the side of the engine block. In most PACCAR engines, the compressor is located on the driver’s side of the engine, near the lower section of the block. However, the exact location can vary depending on the specific model of the PACCAR engine (for example, whether it is a MX-13 or MX-11) and the truck chassis configuration.
How to Identify the Air Compressor

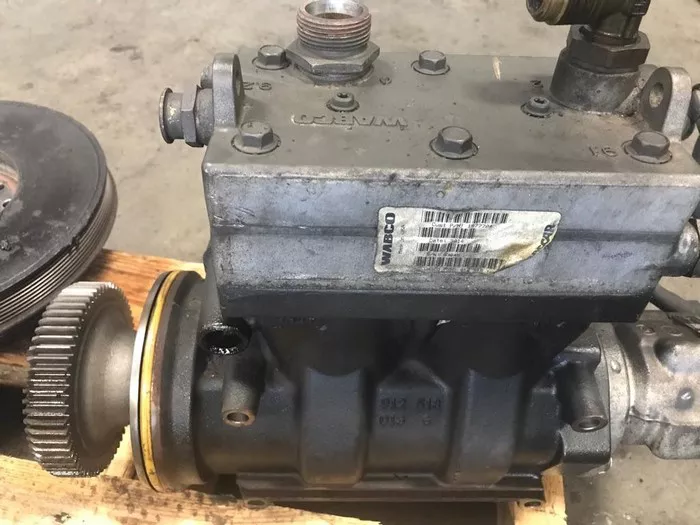

Physical Appearance: The air compressor is typically a round, metallic component with a relatively compact design. It usually has a pulley on the front connected to the engine’s crankshaft through a belt. The compressor will also have various lines and hoses leading from it, usually running to the air tank and other components that require compressed air.
Hoses and Piping: Look for the large diameter hoses running from the compressor; these are typically air lines that lead to the vehicle’s air tanks or systems. These hoses are a good indicator that the component is the air compressor.
Mounting Position: The compressor is mounted securely to the engine’s block or the front auxiliary bracket, ensuring that it is firmly attached and aligned with the engine’s rotational systems.
PACCAR MX Engine Variants and Air Compressor Location
PACCAR’s MX engine lineup, including the MX-13 and MX-11, are commonly found in both Kenworth and Peterbilt trucks. The air compressor’s location is generally similar across these variants, though slight differences can exist based on the configuration of the truck. The MX-13, for example, is known for its power and performance, and the air compressor on this engine will typically be positioned lower on the engine, often beneath the turbocharger or on the same side as the alternator.
In the MX-11 engine, the air compressor may be slightly higher or located further to the rear, but it will still generally be mounted in a similar position along the engine block or in front of it.
Other PACCAR Engine Models
For engines like the PACCAR PX-8 or smaller variants, the compressor may be located in a slightly different area. These engines may have a smaller or more compact compressor, often integrated into the accessory drive or mounted directly on the block. Always check the engine manual for the precise location based on the engine model.
Components and Functioning of the Air Compressor
The air compressor on a PACCAR engine works in conjunction with other engine components, including the cooling system, turbocharger, and fuel management system. Below are some key components of the air compressor system and their functions:
Compressor Head
The head of the compressor is where the air is compressed. It is typically designed with an intake valve that lets in air from the atmosphere and a discharge valve where the compressed air exits. Some compressors also feature a built-in cooling mechanism to prevent overheating.
Piston and Cylinder
Most air compressors on PACCAR engines use a piston system. The piston moves up and down inside a cylinder, compressing air as it moves. This type of compressor can generate higher pressures, which are ideal for powering air brake systems.
Pulley and Belt
The compressor is powered by a belt that is connected to the engine’s crankshaft or auxiliary drive system. This system uses a pulley to transfer engine power to the air compressor. The belt’s tension is crucial in ensuring the compressor works efficiently. If the belt is too loose or too tight, the compressor’s performance could be compromised.
Intake and Exhaust Valves
The intake valve draws in air from the atmosphere, while the exhaust valve expels the compressed air to the air storage tanks. These valves operate in sync with the piston and cylinder to ensure that air is continuously compressed and stored.
Air Dryer
In addition to the compressor itself, the air system also includes an air dryer that removes moisture from the compressed air before it enters the air tanks. This is critical for preventing moisture buildup, which can cause corrosion in the air lines and reduce the lifespan of the air system.
Air Tank
The air tank stores the compressed air until it is needed by the vehicle’s systems. Once compressed air has been generated by the compressor, it is sent to the air tank, where it is held under pressure until it is required for the air brakes or other systems.
Common Issues with the Air Compressor on PACCAR Engines
Like any other component, the air compressor on a PACCAR engine can experience issues over time. Below are some common problems:
Loss of Air Pressure
If the air compressor fails to maintain adequate air pressure, it could lead to a range of issues, including air brake failure or problems with the engine’s auxiliary systems. A loss of air pressure is often caused by a leak in the air lines or a malfunctioning compressor valve.
Excessive Noise
An unusually noisy air compressor could be a sign of an internal issue, such as worn-out bearings or an unbalanced pulley. This could lead to a breakdown if not addressed.
Overheating
If the air compressor overheats, it may cease to function properly. Overheating is often caused by a lack of lubrication or inadequate cooling, both of which can result in significant damage to the compressor.
Water Contamination
Water buildup in the compressor or air lines can lead to rust, blockages, or damage to the system. Regular maintenance, including the use of an air dryer, can prevent this.
Maintenance and Inspection of the Air Compressor
Regular maintenance is crucial for ensuring the proper functioning of the air compressor. Below are some tips for keeping the air compressor in top condition:
Check for Leaks: Regularly inspect the air compressor, hoses, and air lines for leaks. Leaks can result in pressure loss and reduced system efficiency.
Inspect the Belts: Check the tension of the belts and look for signs of wear. A loose or worn belt can cause the compressor to malfunction.
Change the Oil: Some air compressors are oil-lubricated, and the oil should be changed regularly to ensure smooth operation.
Replace the Air Dryer Filter: The air dryer filter should be replaced periodically to prevent moisture buildup.
Monitor for Unusual Noises: If the compressor starts making strange noises, it could indicate internal damage, which requires immediate attention.
Conclusion
The air compressor on a PACCAR engine plays a crucial role in ensuring the proper functioning of air-driven systems such as brakes, suspension, and even engine operations. While the exact location of the air compressor may vary depending on the engine model (such as the PACCAR MX-13 or MX-11), it is typically mounted on the engine block or auxiliary drive. Regular maintenance and attention to detail are essential for keeping the compressor in good working condition and ensuring the safety and reliability of the vehicle. Understanding the role, location, and maintenance needs of the air compressor can help fleet owners and mechanics improve the longevity of their PACCAR-powered vehicles.
