Air compressors are integral pieces of equipment used across various industries, from manufacturing to automotive repair and construction. Their role in pressurizing air for a range of tasks such as inflating tires, powering pneumatic tools, and even supplying air to tanks, makes them essential for daily operations. While many users understand how to operate an air compressor, identifying and understanding the function of key components, such as the check valve, is vital for efficient operation and maintenance.
In this article, we will explore the role of the check valve in an air compressor, where it is located, and how to maintain and troubleshoot it to ensure the longevity and proper functioning of your air compressor.
What Is a Check Valve in an Air Compressor?
Before diving into its location, it’s important to understand what a check valve is and its specific function in an air compressor system. A check valve is a one-way valve that allows air to flow in only one direction. In an air compressor, the check valve plays a crucial role in preventing the backflow of compressed air, ensuring that the pressurized air doesn’t escape back into the compressor when it is shut off or during idle periods.
When the compressor is running, the check valve opens, allowing compressed air to pass from the compressor into the air tank. Once the compressor is turned off, the check valve closes, creating a seal that prevents the compressed air from flowing back into the compressor, which would reduce efficiency and could potentially cause damage to the compressor components.
The Role of the Check Valve in an Air Compressor System
Preventing Backflow of Air
The primary purpose of the check valve is to prevent the backflow of air. Backflow can lead to several issues, such as loss of air pressure, inefficient operation, and potential damage to the compressor’s internal components. By ensuring that the air stays within the tank, the check valve helps the compressor maintain the correct air pressure, improving performance and longevity.
Protecting the Compressor
When air flows back into the compressor, it could damage sensitive parts such as the piston or cylinder. The check valve serves as a protective barrier, preventing this kind of damage by blocking the reverse flow of air. This ensures that the compressor operates under the right conditions and avoids unnecessary wear and tear on its components.
Maintaining Tank Pressure
The check valve also helps maintain the pressure inside the tank after the compressor has turned off. This pressure is essential for the compressor to perform tasks such as inflating tires, operating pneumatic tools, or running other machinery that requires compressed air. If the check valve fails, the tank could lose pressure, which would require the compressor to cycle more frequently, leading to increased wear and energy consumption.

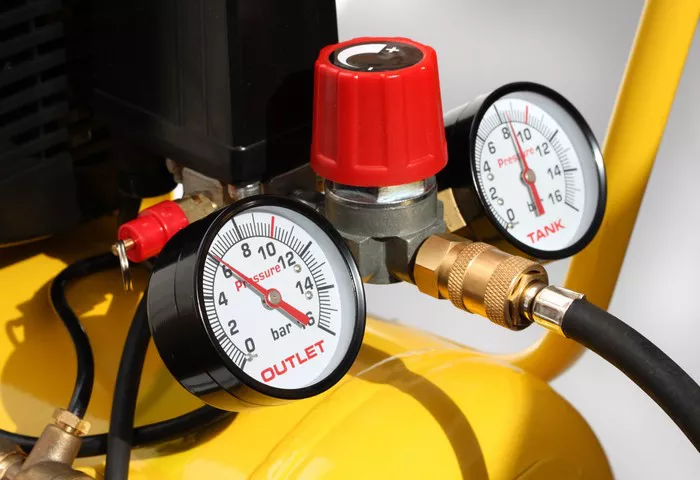

Where Is the Check Valve Located on an Air Compressor?
The exact location of the check valve in an air compressor depends on the type and model of the compressor, but it is typically located on the air tank or on the compressor head. In general, there are three common areas where the check valve is found:
On the Air Tank (Tank Check Valve)
For most traditional piston-style air compressors, the check valve is located on the air tank. It is typically attached to the tank outlet or the pipe that leads from the tank to the compressor. The check valve will be situated between the air tank and the compressor’s pump assembly.
In these systems, the check valve is connected to the tank fitting and allows air to flow from the compressor into the tank when the compressor is running. It will remain closed when the compressor is turned off to prevent air from flowing backward into the compressor.
How to Find the Check Valve on the Tank
Step 1: Look for the outlet port on the air tank. This is the connection point where air is released from the tank to be used by tools or other systems.
Step 2: The check valve is typically threaded onto this port, and you will see a small valve that appears to have a spring-loaded mechanism.
Step 3: If the valve is mounted vertically or horizontally, you may need to use a wrench to unscrew it from the tank if you are performing maintenance or replacing it.
On the Compressor Head (Compressor Check Valve)
In some air compressor models, the check valve is located directly on the compressor head. In this configuration, the check valve is typically part of the compressor head assembly, and it allows air to flow from the compressor pump into the air tank. Once the pump cycles off, the valve closes to stop the air from flowing backward.
This type of check valve is typically more common in smaller or compact air compressor units, where the compressor head is directly connected to the tank.
How to Find the Check Valve on the Compressor Head
Step 1: Look for the outlet tube that connects the compressor head to the tank. This tube is usually made of metal or reinforced rubber.
Step 2: The check valve is often threaded onto this tube, right at the point where it connects to the compressor head.
Step 3: Depending on your model, the valve may be directly on the head or attached to a fitting that leads to the tank.
Inline Check Valves
In some more advanced air compressor systems, particularly those used in industrial applications, inline check valves may be installed in the piping between the compressor and the tank. These are placed in the air supply line and prevent air from returning to the compressor during idle periods.
How to Find an Inline Check Valve
Step 1: Follow the airline from the compressor to the tank. Inline check valves are typically located somewhere along this pipe.
Step 2: The check valve will often look like a small cylinder or brass fitting and will be located in the piping between the compressor and the tank.
How Does the Check Valve Work?
Operation During Compression Cycle
When the compressor is running, air is compressed and pushed through the check valve into the storage tank. The valve opens automatically when pressure is applied, allowing the air to flow in one direction (toward the tank).
Operation After Compressor Shuts Off
Once the compressor stops running, the air pressure in the tank prevents backflow, causing the spring-loaded mechanism in the check valve to close. This action seals off the opening and prevents the compressed air from flowing backward into the compressor.
Common Problems with Air Compressor Check Valves
Like any mechanical component, check valves can wear out over time. Understanding the common issues associated with check valves can help you troubleshoot problems before they lead to more significant issues.
Valve Leakage
If the check valve is leaking, it can cause a loss of air pressure in the tank, leading to decreased efficiency. Air leakage can occur if the valve’s seal becomes damaged or dirty. You may hear a hissing sound or notice that the compressor is running more frequently than usual.
Solution: Inspect the check valve for any visible damage, and clean or replace it if necessary.
Valve Sticking
If the valve becomes stuck, it can fail to open or close properly. A stuck valve may prevent the compressor from pressurizing the tank or allow backflow to occur.
Solution: Try gently tapping the valve with a rubber mallet to see if it loosens. If the valve remains stuck, it may need to be replaced.
Noisy Valve
A noisy check valve can indicate an internal problem with the spring or mechanism. If the valve is excessively noisy during the operation of the compressor, it could be a sign of wear or a need for lubrication.
Solution: Apply lubrication to the valve or consider replacing it if the noise persists.
Broken or Worn Spring
The spring inside the check valve is responsible for closing the valve when the compressor stops. If the spring is broken or worn out, the valve may not close properly, allowing air to escape.
Solution: Replace the spring or the entire check valve assembly if the spring is damaged.
How to Maintain Your Air Compressor’s Check Valve
Proper maintenance of the check valve is essential for optimal compressor performance. Regular inspection, cleaning, and replacement of parts can extend the life of your air compressor and prevent costly repairs.
Regular Inspection
Inspect the check valve periodically for signs of wear, dirt, or debris. Regular inspection can help catch problems before they cause more serious issues.
Clean the Valve
Dirt and debris can build up inside the check valve, preventing it from sealing properly. Clean the valve using compressed air or a cleaning solution designed for pneumatic systems.
Replace When Necessary
If you notice signs of damage, such as a cracked valve, worn spring, or persistent air leakage, it’s best to replace the valve immediately. Continuing to use a damaged valve can lead to further damage to the compressor system.
Conclusion
The check valve is a small but crucial component in the air compressor system. Its primary function is to prevent the backflow of air, maintaining pressure within the air tank and protecting the compressor from damage. Whether located on the tank, compressor head, or inline in the piping, the check valve is essential for efficient compressor operation.
By understanding the check valve’s function, location, and common problems, you can ensure that your air compressor runs smoothly for years to come. Regular inspection, maintenance, and timely replacement of the check valve are essential for keeping your compressor in peak condition and avoiding costly repairs down the line.
