A CO2 fire extinguisher is a crucial tool in fire safety, designed to combat various types of fires effectively. Its versatility makes it an essential component in both industrial and residential environments. Understanding its uses, functionality, and limitations is vital to ensure that it’s employed appropriately in emergency situations. This article will explore the various applications of CO2 fire extinguishers, highlighting their benefits, how they work, and why they are particularly suited for specific fire types.

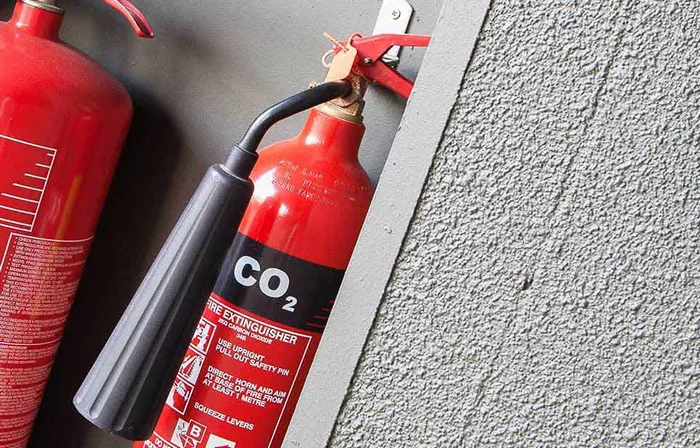

What Is a CO2 Fire Extinguisher?
A CO2 fire extinguisher is a portable device that contains carbon dioxide gas under high pressure. When discharged, it expels the CO2, which is a non-flammable, colorless, and odorless gas. The purpose of this gas is to extinguish fires by removing one of the critical components of the fire triangle: oxygen.
The fire triangle consists of three elements needed for combustion: heat, fuel, and oxygen. By removing or displacing oxygen, CO2 extinguishers effectively smother the fire, preventing it from continuing to burn.
Unlike other types of fire extinguishers that use water or chemical agents, CO2 extinguishers do not leave any residue behind. This makes them particularly useful in environments where residue could cause damage to sensitive equipment, such as computer servers, electrical machinery, or laboratory settings.
How Does a CO2 Fire Extinguisher Work?
CO2 extinguishers operate through two primary mechanisms to extinguish fires:
Displacement of Oxygen
When CO2 is released from the extinguisher, it is heavier than air and sinks to the ground, displacing the oxygen surrounding the fire. Since oxygen is a vital component for sustaining combustion, reducing its availability makes it difficult for the fire to continue burning.
Cooling Effect
The rapid release of CO2 results in a significant drop in temperature, which cools the fire and its surroundings. This cooling effect, combined with the displacement of oxygen, helps to bring the fire under control or put it out entirely.
Because CO2 doesn’t leave behind any residue, it is particularly advantageous in areas where cleanliness and avoiding damage are important.
What Fires Can a CO2 Fire Extinguisher Be Used For?
CO2 fire extinguishers are classified as effective for Class B and Class C fires. Understanding the types of fires that CO2 extinguishers can handle is essential to using them safely and effectively.
Electrical Fires (Class C)
CO2 fire extinguishers are highly effective in fighting electrical fires because of their non-conductive properties. Electrical fires occur when electrical equipment, wiring, or circuits overheat or malfunction, creating a risk of fire.
Why CO2 is Effective: Since CO2 is non-conductive, it can safely be used on live electrical equipment without posing a risk of electrocution. It will not conduct electricity like water or foam-based extinguishers would.
Types of Electrical Fires: Common examples include fires in electrical appliances, wiring, circuit breakers, and computer systems. These fires can be extremely dangerous if not dealt with appropriately, and using a CO2 extinguisher can prevent further electrical hazards.
Additionally, CO2 extinguishers do not leave any residue behind, which is important when dealing with sensitive equipment such as computers, servers, and other electrical machinery that could be damaged by powder-based or water-based extinguishing agents.
Flammable Liquids (Class B)
CO2 extinguishers are also effective for Class B fires, which involve flammable liquids. These types of fires are fueled by substances like gasoline, oil, paints, solvents, and other volatile liquids that can ignite and spread quickly.
Why CO2 is Effective: CO2 works by cooling the fire and displacing oxygen, which helps to suppress the flames. CO2’s ability to smother the fire makes it particularly useful for liquid fires that are hard to put out with water, as water can spread the flames or cause a dangerous reaction in some cases (for example, with flammable oils).
Types of Flammable Liquid Fires: Examples include gasoline, kerosene, cooking oil, or chemical solvents. These liquids can catch fire quickly and spread rapidly, so it’s important to have the right extinguisher available to handle such emergencies.
Advantages of CO2 Fire Extinguishers
There are several reasons why CO2 fire extinguishers are preferred in certain environments. Their advantages make them a versatile and reliable option for many fire safety situations:
Non-conductive
As mentioned, CO2 is non-conductive, making it the safest choice for electrical fires. This property is particularly beneficial in commercial and industrial settings with electrical equipment and machinery.
No Residue
Unlike foam or powder-based extinguishers, CO2 doesn’t leave a messy residue. This makes it ideal for areas where cleanliness is a priority, such as data centers, hospitals, laboratories, and offices with sensitive equipment.
Efficiency in Extinguishing Fires
CO2 extinguishers are effective in extinguishing fires quickly, particularly in enclosed spaces where the gas can efficiently displace oxygen and cool the fire.
Lightweight and Portable
CO2 fire extinguishers are generally lighter than some other types of fire extinguishers, making them easier to handle and move. Their compact size also makes them ideal for environments where space is limited.
Long Shelf Life
CO2 fire extinguishers are relatively low-maintenance and have a longer shelf life compared to other types of extinguishers. They do not require regular inspections or recharging unless they are used, which makes them cost-effective in the long run.
Limitations of CO2 Fire Extinguishers
While CO2 extinguishers are highly effective in certain scenarios, they also have their limitations:
Ineffective for Class A Fires
CO2 extinguishers are not suitable for Class A fires, which involve ordinary combustibles like wood, paper, and cloth. For these types of fires, water or foam extinguishers are more appropriate.
Limited Range
CO2 extinguishers have a relatively limited range compared to other types of extinguishers. They typically have a range of about 3 to 8 feet, meaning you need to be relatively close to the fire to use them effectively.
Replenishment of Oxygen
CO2 works by displacing oxygen, so it can be dangerous to use in confined or poorly ventilated spaces. In such environments, CO2 can lead to a reduction in breathable air, potentially causing suffocation. Always ensure proper ventilation when using a CO2 extinguisher in confined spaces.
Cold Burns
When CO2 is expelled from the extinguisher, it cools rapidly and can cause frostbite-like injuries if it comes into contact with skin. Proper handling and wearing protective gear, such as gloves, are recommended when using a CO2 extinguisher.
Best Practices for Using a CO2 Fire Extinguisher
To maximize the effectiveness of a CO2 fire extinguisher and ensure safety during use, follow these best practices:
Know the Fire Class: Before using a CO2 extinguisher, ensure the fire falls within the categories it is designed to handle (Class B and Class C fires).
Use Proper Technique: Hold the nozzle and direct the CO2 at the base of the fire. Avoid holding the horn directly with your hands, as the CO2 can cause frostbite.
Evacuate if Necessary: If the fire is too large or spreading quickly, evacuate the area and call emergency services immediately. CO2 extinguishers are effective for small to moderate fires but may not be sufficient for large-scale fires.
Ventilate the Area: After using a CO2 extinguisher, ventilate the area to allow the gas to dissipate and restore oxygen levels to normal.
Conclusion
A CO2 fire extinguisher is an essential tool in fire safety, particularly for electrical and flammable liquid fires. Its unique properties, including its non-conductivity, residue-free nature, and cooling effect, make it a preferred choice in environments with sensitive equipment or electrical hazards.
However, it’s crucial to understand its limitations, such as its ineffectiveness for Class A fires and the potential for suffocation in confined spaces. Proper training and understanding of how and when to use a CO2 fire extinguisher are key to ensuring its effectiveness in emergency situations.
By choosing the right fire extinguisher for the job and maintaining a solid fire safety plan, you can minimize the risk of injury and damage during a fire emergency. CO2 fire extinguishers remain a critical component in modern fire-fighting protocols, providing peace of mind and safety in a variety of settings.
