Flow meters are essential instruments in many industries for measuring the flow rate of liquids, gases, and steam. One of the most commonly used flow meters is the orifice plate flow meter. It is simple, cost-effective, and highly accurate under the right conditions. In this article, we will explain how an orifice plate flow meter works, its components, advantages, limitations, and applications.
What is an Orifice Plate Flow Meter?
An orifice plate flow meter is a device used to measure the flow rate of a fluid in a pipe. It works based on the principle of differential pressure. The orifice plate is a thin, flat plate with a hole (orifice) in the center, and it is installed perpendicular to the flow of the fluid. When the fluid flows through the pipe and encounters the orifice plate, the flow is constricted, causing a pressure drop. The pressure difference before and after the orifice plate can be used to calculate the flow rate.

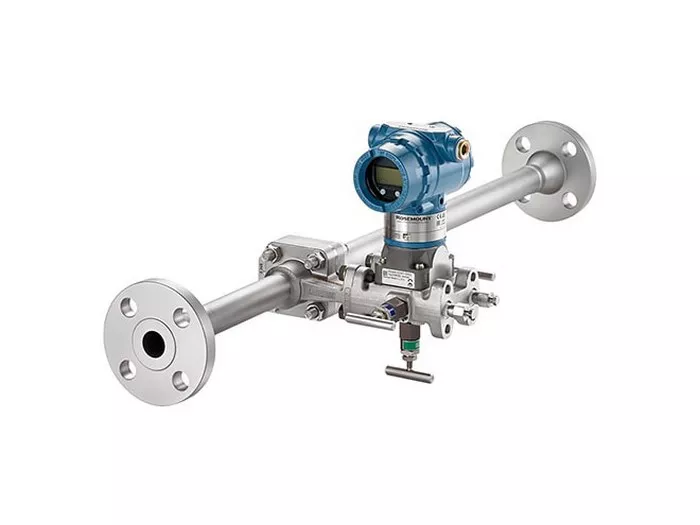

Components of an Orifice Plate Flow Meter
An orifice plate flow meter consists of several key components:
Orifice Plate: The plate itself, usually made of stainless steel, with a precise hole in the center.
Metering Tube: The pipe section in which the orifice plate is installed.
Pressure Taps: Devices that measure the pressure on either side of the orifice plate.
Differential Pressure Transmitter: A device that measures the difference in pressure before and after the orifice plate.
The orifice plate is installed in the metering tube, with the pressure taps positioned on either side of the plate. The differential pressure transmitter then calculates the flow rate based on the difference in pressure.
How Does an Orifice Plate Flow Meter Work?
The basic operating principle of the orifice plate flow meter is the creation of a pressure drop across the orifice. As the fluid flows through the pipe and passes through the orifice, the flow rate decreases, which causes a drop in pressure. This pressure drop can be measured by pressure taps installed before and after the orifice plate.
Here is a simple explanation of the flow process:
- Fluid enters the pipe and approaches the orifice plate.
- The orifice plate constricts the flow of the fluid, causing a reduction in the flow area.
- A pressure drop occurs as the fluid passes through the orifice.
- Pressure taps measure the pressure on both sides of the orifice.
The differential pressure is used to calculate the flow rate, using standard flow equations such as the Bernoulli equation. The amount of pressure drop across the orifice is directly related to the flow rate of the fluid. The larger the pressure drop, the higher the flow rate.
Advantages of Orifice Plate Flow Meters
Orifice plate flow meters offer several advantages, including:
Cost-Effective: They are relatively inexpensive compared to other flow meters.
Simple Design: The basic design is straightforward, with minimal moving parts, making them easy to install and maintain.
Wide Range of Applications: Orifice plate flow meters can be used for various fluids, including gases, liquids, and steam.
High Accuracy: When properly calibrated, they can provide accurate and reliable measurements.
No Moving Parts: Since there are no moving parts, the orifice plate is less prone to wear and tear, which increases its reliability and lifespan.
Limitations of Orifice Plate Flow Meters
Despite their many advantages, orifice plate flow meters also have some limitations:
Pressure Drop: The orifice plate creates a pressure drop, which can lead to energy loss in the system.
Limited Rangeability: The flow rate measurement is most accurate at specific flow conditions. Orifice plate flow meters may not perform well over a wide range of flow rates.
Requires Regular Maintenance: The orifice plate may become clogged or damaged over time, requiring regular inspection and cleaning.
Accuracy Depends on Fluid Properties: The accuracy of the flow measurement depends on the fluid’s density, viscosity, and temperature. Variations in these properties can affect the performance of the flow meter.
Applications of Orifice Plate Flow Meters
Orifice plate flow meters are widely used in various industries due to their simplicity and effectiveness. Some of the common applications include:
Oil and Gas Industry: Orifice plate flow meters are used to measure the flow of natural gas, crude oil, and other hydrocarbons in pipelines.
Chemical Processing: These flow meters help monitor the flow of chemicals and fluids in industrial processes.
Water Treatment: Orifice plate flow meters are used in water treatment plants to monitor water and wastewater flows.
HVAC Systems: In heating, ventilation, and air conditioning systems, they measure the flow of steam and other fluids.
Steam Flow Measurement: Orifice plate flow meters are commonly used to measure steam flow in power plants, refineries, and other industrial applications.
Installation and Maintenance of Orifice Plate Flow Meters
Installing and maintaining an orifice plate flow meter requires careful attention to detail to ensure accurate measurements.
Installation
Proper Sizing: The orifice plate must be sized correctly for the pipe and fluid. The size of the orifice affects the pressure drop and, consequently, the accuracy of the flow measurement.
Location: The flow meter should be installed at a straight section of pipe, free from bends or disturbances in the flow. Disturbed flow can cause inaccurate readings.
Orientation: The orifice plate should be installed perpendicular to the flow direction. Pressure taps must be located correctly, one upstream and one downstream of the orifice.
Maintenance
Regular Cleaning: The orifice plate may accumulate debris or scale over time, leading to inaccurate readings. Regular cleaning helps maintain accuracy.
Calibration: The flow meter should be calibrated regularly to ensure the accuracy of flow measurements.
Inspection: Regular inspection of the orifice plate for wear, corrosion, or damage is essential for ensuring reliable performance.
Conclusion
An orifice plate flow meter works based on the principle of differential pressure. As fluid flows through a pipe and encounters the orifice plate, the flow constricts, creating a pressure drop. This pressure difference can be measured to calculate the flow rate. While orifice plate flow meters are cost-effective and widely used, they do have limitations, such as energy loss due to pressure drop and limited rangeability. However, with proper installation, calibration, and maintenance, they can provide reliable and accurate flow measurements in various industrial applications.
Understanding how an orifice plate flow meter works and its advantages and limitations is crucial for selecting the right flow measurement solution for specific applications. Whether you’re working in oil and gas, water treatment, or chemical processing, orifice plate flow meters offer a simple yet effective method for monitoring fluid flow.
