Charging an air conditioning (AC) compressor with oil is an essential task that helps maintain the longevity and efficiency of your system. Whether you are working on a home air conditioner or a commercial AC system, knowing how to properly charge the compressor with oil can make a significant difference in performance. This guide will walk you through the steps involved in adding oil to your AC compressor, how to determine the right type of oil for your system, and why this process is critical to its overall health.
What is AC Compressor Oil and Why is it Important?
The AC compressor is a critical component of the general machinery in an air conditioning system. It is responsible for circulating refrigerant throughout the system. As the compressor moves refrigerant through the system, it generates heat, which can cause wear and tear on the internal parts. To prevent the compressor from overheating and suffering from friction damage, the oil lubricates the moving components, ensuring smooth operation and minimizing damage.
Why Charging Oil is Necessary
Over time, an AC system may lose oil due to leaks, general wear, or normal operation. If the compressor lacks sufficient oil, it can lead to overheating, poor performance, and, ultimately, system failure. Charging the compressor with the right amount of oil is essential to maintain proper lubrication, keep the compressor functioning smoothly, and prevent costly repairs.
Types of Oil Used in AC Compressors
Before you can charge your AC compressor with oil, it’s important to know which type of oil is required for your system. AC compressors typically use one of the following oils:
Mineral Oil
Mineral oil is often used in older systems, especially those using CFC or HCFC refrigerants. It is relatively inexpensive and can be effective, but it’s not compatible with newer refrigerants. Always check the manufacturer’s guidelines to confirm if mineral oil is appropriate for your compressor.
Synthetic Oil
Synthetic oils are more advanced and designed for use in systems with HFC refrigerants such as R-134a or R-410a. They offer superior lubrication and perform better at high temperatures, making them ideal for modern compressors and machines.
PAG (Polyalkylene Glycol) Oil
PAG oil is commonly used in automotive and residential air conditioning systems. It is highly compatible with refrigerants like R-134a and provides excellent lubrication, even in high-demand scenarios. PAG oil also ensures better system efficiency and longevity.
Ester Oil
Ester oil is used in systems that rely on R-134a refrigerant. Unlike mineral oil, ester oil is hygroscopic (it absorbs moisture), so it must be handled carefully to avoid contamination. This oil type is also ideal for modern compressors, ensuring smooth operation and reducing the risk of breakdowns.
To ensure the proper functioning of your compressor, always use the oil recommended by the manufacturer. Using the wrong type of oil can lead to compressor failure or reduced performance.
Tools You’ll Need to Charge an AC Compressor with Oil
Before you begin adding oil to your AC compressor, ensure you have the following tools and materials on hand:
Necessary Tools
AC Oil Injector: This tool is designed to inject oil into the compressor without spilling.
Refrigerant Gauge Set: Used to monitor refrigerant levels and ensure the system is properly charged.
Vacuum Pump: Essential for evacuating air and moisture from the system before charging.
Oil Charge Kit: A kit containing the specific oil recommended for your compressor.
Manifold Gauge Set: For measuring pressure in the system and ensuring proper oil flow.
Oil Sight Glass: Some AC units are equipped with a sight glass to visually check oil levels.
Make sure you have the correct type and amount of oil before proceeding. Some compressors require only a small amount of oil, while others need a more substantial charge.
Step-by-Step Guide to Charging AC Compressor with Oil
Turn Off the Power Supply
Safety should always be your top priority when working with any general machinery. Start by turning off the AC unit and disconnecting its power supply to avoid any electrical hazards while working on the compressor.

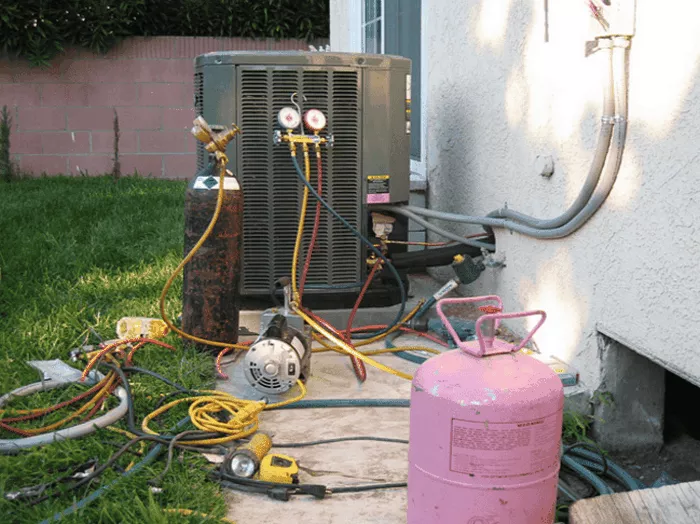

Locate the Compressor and Service Ports
The AC compressor has two service ports—one on the low-pressure side and one on the high-pressure side. These ports are usually located near the compressor and are marked with caps. You’ll need to attach the manifold gauges and charge oil through these ports. Make sure to identify which port is the low-pressure side, as this is where you’ll be adding the oil.
Check the Oil Level
Before adding new oil, it’s important to assess the existing oil level in the system. Some compressors come with a sight glass to give you a clear indication of the oil level. If your system does not have one, you may need to remove the oil fill cap to check the oil level manually. If the oil level is low, this is when you can proceed to add more oil to the compressor.
Evacuate the System
Before charging the compressor, it’s important to remove any air or moisture in the system. This is done by using a vacuum pump. Attach the vacuum pump to the low-pressure side of the manifold gauge and allow it to run until the system is fully evacuated. This step helps prevent moisture buildup, which can cause corrosion inside the compressor and other components.
Charge the Compressor with Oil
Now it’s time to charge the compressor with oil. Using an AC oil injector, slowly add the required amount of oil into the system. Most systems require only a small amount, so be cautious not to overcharge the compressor. Overcharging can lead to problems such as clogging the system, excessive pressure, or inefficient cooling.
When adding the oil, it’s essential to follow the manufacturer’s guidelines regarding the amount and type of oil to use. If you’re unsure, it’s always better to add a little less than to risk adding too much.
Check the Oil Flow and Pressure
Once you have added the oil, you’ll want to check the system to ensure that the oil is flowing properly. This can be done by observing the oil sight glass, if your system has one. Alternatively, monitor the pressure gauges on the manifold to ensure that the oil is circulating correctly.
Reconnect and Test the System
Once you’re confident that the oil has been added properly and the system is evacuated, reconnect the power and test the system. Turn the AC unit on and monitor its performance. If everything is working correctly, the compressor should be running smoothly, and you should notice a significant improvement in the cooling efficiency.
If you still notice any issues with the compressor or cooling performance, you may need to check the system for leaks or consult with a professional.
How to Avoid Common Mistakes When Charging AC Compressor with Oil
Charging an AC compressor with oil is a delicate task, and there are several common mistakes that people often make. Here are a few tips to avoid them:
Using the Wrong Type of Oil
Always double-check the manufacturer’s recommendations for the type of oil to use in your AC system. Using the wrong oil can lead to poor lubrication and damage to the compressor.
Overcharging the System
Adding too much oil can clog the system, increase pressure, and reduce efficiency. Always measure the amount of oil being added and follow the manufacturer’s guidelines carefully.
Not Evacuating the System
Failing to evacuate the system before adding oil can result in trapped air and moisture, which can damage the system over time. Always use a vacuum pump to remove air and moisture from the system before charging.
Ignoring the Pressure Readings
Monitor the pressure gauges while charging the system to ensure that everything is within the recommended range. If the pressure is too high or low, it may indicate an issue with the compressor or refrigerant levels.
Conclusion
Charging an AC compressor with oil is an essential maintenance task that ensures your air conditioning system operates efficiently and lasts longer. By following the proper steps, using the right tools, and adding the correct amount of oil, you can help prevent damage to the compressor and keep your system in top condition. Regular maintenance, including charging the compressor with oil when necessary, is key to maintaining the overall health of your system and ensuring optimal performance.
