Plate heat exchangers are widely used in various industries, including machine manufacturing, chemical equipment, electrical equipment, and general machinery. These devices are essential in transferring heat between two or more fluids, ensuring efficient cooling or heating in systems like generators and compressors. In this article, we will explore the factors that affect the cost of a plate heat exchanger and provide insights into how much you can expect to pay for one.
What Is a Plate Heat Exchanger?

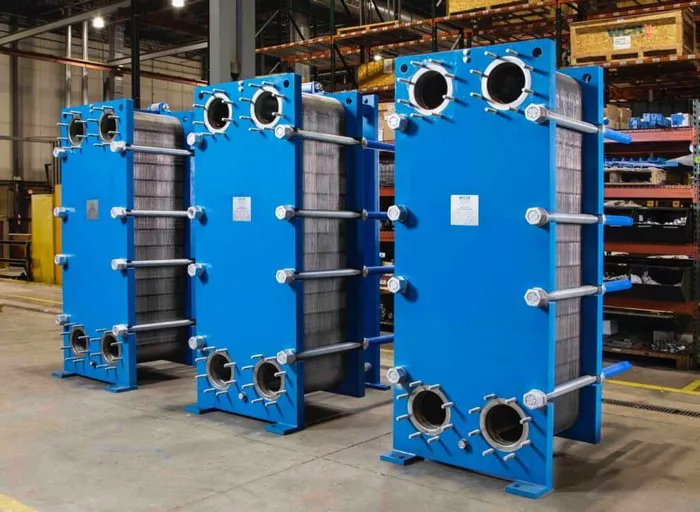

A plate heat exchanger is a type of heat exchanger made up of multiple thin, corrugated plates that are stacked together. Fluids pass through the spaces between the plates, where heat is transferred from one fluid to another. This design is efficient because the large surface area provided by the plates enhances heat transfer. Plate heat exchangers are commonly used in industrial applications, including machine cooling, chemical processing, and HVAC systems. They are compact, efficient, and customizable to suit specific needs.
Factors That Affect the Cost of Plate Heat Exchangers
The price of a plate heat exchanger can vary depending on several factors. These factors include the material used, the size and capacity of the unit, the type of fluids being used, and the specific application. Let’s break down the key elements that influence the cost:
1. Material
The material of the plates in the heat exchanger plays a significant role in the overall cost. Most plate heat exchangers are made from stainless steel, which is durable and resistant to corrosion. However, if the heat exchanger needs to handle highly corrosive fluids, you may need to use more specialized materials, such as titanium or Hastelloy. These materials are more expensive, which will increase the overall price of the heat exchanger.
2. Size and Capacity
Larger plate heat exchangers with higher capacity will naturally cost more than smaller ones. The capacity of a heat exchanger depends on factors like the flow rate of the fluids and the temperature difference between them. In general, the bigger the heat exchanger, the more expensive it will be. Custom-sized heat exchangers designed to meet specific needs can also add to the cost.
3. Type of Fluid
The type of fluid being used can also impact the price of a plate heat exchanger. For example, if the heat exchanger needs to handle highly viscous or hazardous fluids, it may require special sealing, design adjustments, or materials. These modifications can drive up the price. Similarly, plate heat exchangers used in high-temperature or high-pressure applications may also require more robust construction, which can increase costs.
4. Design Features
Some plate heat exchangers come with additional features such as gaskets, pressure plates, or extra seals to enhance their performance. These features may add to the initial cost, but they can improve efficiency and durability. Heat exchangers designed for specific industrial applications, such as for use in generators or compressors, may also feature specialized designs that affect the cost.
5. Manufacturer and Brand
The manufacturer and brand of the plate heat exchanger can significantly affect the price. Well-established brands with a reputation for quality and reliability may charge higher prices for their products. However, they often offer longer warranties, better customer support, and more efficient designs, which may be worth the extra cost in the long term.
Price Range of Plate Heat Exchangers
The price of a plate heat exchanger can range from a few hundred dollars for small, low-capacity units to several thousand dollars for larger, high-capacity, and specialized units. For example:
Small plate heat exchangers (used in smaller machines, chemical equipment, or general machinery) can cost between $300 and $1,000.
Medium-sized units for industrial applications can range from $1,500 to $5,000.
Large plate heat exchangers for high-capacity applications, such as in compressors or generators, can cost anywhere from $5,000 to $20,000 or more, depending on their materials, size, and customization.
It’s important to note that these are approximate prices, and the actual cost will depend on the specific factors mentioned earlier. You should also account for installation costs, maintenance, and any additional components or modifications that might be needed.
Advantages of Plate Heat Exchangers
Plate heat exchangers offer several advantages that make them a popular choice for many applications. These include:
1. High Efficiency
Plate heat exchangers are known for their high thermal efficiency. The large surface area of the plates ensures effective heat transfer, even in systems with limited space. This efficiency translates to lower energy consumption and operating costs.
2. Compact Design
Plate heat exchangers are more compact than traditional shell-and-tube heat exchangers. This makes them ideal for applications where space is limited, such as in small machines or chemical equipment. Their design allows for easy expansion by adding more plates, which can increase capacity without significantly increasing the size of the unit.
3. Flexibility
Plate heat exchangers are highly customizable. The number of plates can be adjusted to suit different flow rates and heat transfer requirements. This flexibility allows them to be used in a wide range of applications, from generators to compressors to HVAC systems.
4. Easy Maintenance
Plate heat exchangers are relatively easy to maintain. The plates can be disassembled for cleaning or replacement if needed, making maintenance simpler than other types of heat exchangers. Regular maintenance ensures optimal performance and extends the lifespan of the unit.
5. Durability
Plate heat exchangers are designed to withstand harsh conditions. They can handle high pressures and temperatures, making them suitable for demanding industrial applications. The materials used in the construction, such as stainless steel, contribute to their durability and resistance to corrosion.
Applications of Plate Heat Exchangers
Plate heat exchangers are used in a variety of industries and applications. Some of the most common uses include:
Machine Cooling: Plate heat exchangers are used to cool machines and components in various industries, including manufacturing and energy production. In machines, chemical equipment, and general machinery, they help to maintain optimal temperatures and prevent overheating.
HVAC Systems: In heating, ventilation, and air conditioning systems, plate heat exchangers are used for both heating and cooling. Their compact design and high efficiency make them ideal for these applications.
Chemical Processing: Plate heat exchangers are commonly used in the chemical industry to transfer heat between different fluids involved in chemical reactions. Their corrosion-resistant materials make them suitable for handling corrosive substances.
Generators and Compressors: In power generation and compression systems, plate heat exchangers help regulate the temperature of fluids, ensuring the efficient operation of the equipment. They are used in various components of generators and compressors to prevent overheating and improve performance.
Conclusion
The cost of a plate heat exchanger depends on several factors, including material, size, capacity, and specific application requirements. While the price can range from a few hundred to several thousand dollars, investing in a high-quality, well-designed heat exchanger can improve efficiency and reduce energy costs over time. Whether you are working with machines, chemical equipment, electrical equipment, or machinery like generators and compressors, plate heat exchangers provide an efficient and reliable solution for heat transfer needs.
