A CO2 extinguisher is one of the most commonly used fire suppression tools, especially in industrial and electrical environments. This type of extinguisher works by releasing carbon dioxide (CO2), a colorless, odorless gas that displaces oxygen around the fire, effectively suffocating the flames. Unlike other extinguishers, CO2 doesn’t leave behind any residue, making it a preferred choice for certain situations. Understanding what are CO2 extinguishers used for and where they are used is important for both safety and efficiency in handling fires.

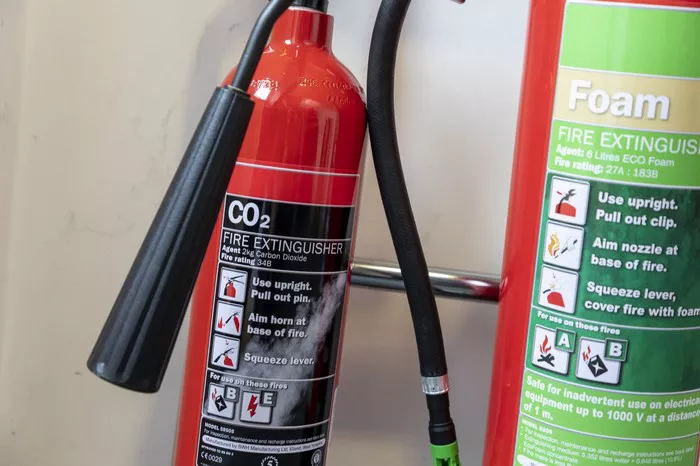

What is a CO2 Extinguisher?
A CO2 extinguisher is designed to fight electrical fires and fires involving flammable liquids. It consists of a cylinder filled with compressed carbon dioxide gas, which is stored under high pressure. When the extinguisher is activated, the CO2 is released through a nozzle, which directs the gas onto the fire. The cold temperature of the CO2 helps cool the fire, while the displacement of oxygen smothers the flames.
The primary advantage of using CO2 extinguishers is that they do not leave any residue behind. This makes them ideal for protecting sensitive equipment, such as electrical equipment and general machinery, where cleanup could be difficult or damaging. CO2 extinguishers are often used in environments like server rooms, laboratories, and factories where equipment cannot be exposed to water or other chemicals.
How Does a CO2 Extinguisher Work?
The CO2 extinguisher operates on the principle of oxygen displacement. When the extinguisher is discharged, CO2 gas is released in a concentrated form. This gas rapidly fills the area around the fire, reducing the oxygen content in the surrounding air. Since fire needs oxygen to sustain itself, the absence of oxygen causes the flames to die out.
The CO2 is also released at a very low temperature. This helps to cool the fire and further inhibit its growth. The combination of oxygen displacement and cooling makes CO2 extinguishers effective for a variety of fire types, especially those involving electrical equipment or flammable liquids.
What Fires Can a CO2 Extinguisher Be Used On?
CO2 extinguishers are classified as Class B and Class C extinguishers. This means they are suitable for two primary types of fires:
Class B Fires – These are fires that involve flammable liquids, such as gasoline, oil, paint, and solvents. CO2 works well in these situations because it does not conduct electricity and leaves no residue behind, which could be a concern with other extinguishing agents.
Class C Fires – These are fires that involve electrical equipment. CO2 extinguishers are especially useful for these types of fires, as CO2 is non-conductive. Using water on electrical fires is dangerous because water can conduct electricity and cause electrical shock or further damage to the equipment. CO2 is safe to use and effective at putting out electrical fires.
Where Are CO2 Extinguishers Commonly Used?
CO2 extinguishers are used in various settings, especially where there is a risk of fires involving electrical equipment or flammable liquids. Here are some common locations where you might find CO2 extinguishers:
Server Rooms and Data Centers: These areas are filled with general machinery and electrical equipment that can easily catch fire. CO2 extinguishers are ideal for these environments because they can suppress electrical fires without damaging sensitive devices.
Factories and Manufacturing Plants: In industrial environments, CO2 extinguishers are used to protect both machinery and workers from flammable liquid fires and electrical fires. CO2 is also useful in preventing fires that could be caused by overheating equipment.
Laboratories: Labs often use electrical equipment and chemicals that could catch fire. CO2 extinguishers are used to handle these fires safely without creating additional hazards.
Commercial Kitchens: CO2 extinguishers can be used to put out small grease or electrical fires in kitchens. Since CO2 doesn’t leave any residue, it is safe to use around food-preparation areas.
Workshops and Warehouses: These spaces often store general machinery and other items that can catch fire. CO2 extinguishers provide a safe, effective solution for extinguishing fires that could occur in these environments.
Why Choose a CO2 Extinguisher?
There are several key reasons why CO2 extinguishers are chosen over other types of extinguishers in certain settings:
No Residue: One of the biggest advantages of CO2 is that it leaves no residue behind. This is especially important in environments where equipment like electrical equipment and general machinery is used, as cleaning up after a fire can be costly and time-consuming.
Non-Conductive: CO2 is non-conductive, making it a safe option for fires involving electrical equipment. Other types of fire extinguishers, such as water or foam, can conduct electricity and cause further damage or risk of electrocution.
Quick and Effective: CO2 works quickly to extinguish fires by displacing oxygen. The rapid suppression of the fire is crucial in preventing it from spreading and causing further damage.
Versatility: CO2 extinguishers can be used for both flammable liquid fires and electrical fires, making them a versatile choice for a variety of environments.
What Are the Limitations of CO2 Extinguishers?
While CO2 extinguishers are highly effective in certain situations, they do have limitations:
Limited Reach: CO2 is released as a gas and has a limited range. This means that it can be difficult to use on large fires or fires that are hard to reach.
Suffocation Risk: Since CO2 works by displacing oxygen, there is a risk of suffocation in confined spaces. It is important to ensure proper ventilation when using a CO2 extinguisher in a closed area.
Not Effective on Solid Fires: CO2 is not suitable for Class A fires, which involve solid materials such as wood, paper, and textiles. For these types of fires, other extinguishers like water or foam should be used.
Cold Burns: The CO2 gas is released at a very low temperature, which can cause cold burns if the user is not careful. It is important to handle the extinguisher properly and avoid direct contact with the nozzle or discharge hose.
How to Use a CO2 Extinguisher
Using a CO2 extinguisher is simple, but it is important to follow the correct procedure for safety:
Pull the Pin: This will release the safety latch and allow you to discharge the CO2.
Aim the Nozzle: Hold the nozzle a few feet away from the base of the fire. Aim it directly at the base of the flames.
Squeeze the Handle: Squeeze the handle to release the CO2 gas. Move the nozzle back and forth in a sweeping motion to ensure that the fire is fully extinguished.
Evacuate if Necessary: If the fire is not quickly controlled, evacuate the area and call emergency services. CO2 extinguishers are effective for small fires, but large fires require professional assistance.
CO2 Extinguishers and Workplace Safety
In workplaces where general machinery, electrical equipment, and flammable liquids are used, having the right type of fire extinguisher is critical. CO2 extinguishers provide an effective and safe option for putting out fires in these environments. Ensuring that employees are properly trained in the use of these extinguishers is equally important. Regular fire drills, safety training, and proper maintenance of CO2 extinguishers can save lives and prevent major losses in the event of a fire.
Conclusion
A CO2 extinguisher is a crucial tool in fighting electrical and liquid fires, especially in environments where general machinery and electrical equipment are used. Its ability to suppress flames without leaving a residue makes it a preferred choice in many industrial and commercial settings. Understanding when and how to use a CO2 extinguisher can prevent significant damage and ensure the safety of people and property. Whether it’s a factory floor, server room, or laboratory, CO2 extinguishers play a vital role in fire safety and protection.
In summary, CO2 extinguishers are designed for specific types of fires and are ideal for handling electrical fires and flammable liquid fires. Their advantages include no residue, non-conductivity, and fast fire suppression, though they do have limitations like suffocation risks in confined spaces. Proper training and maintenance are key to using them effectively in your workplace or facility.
