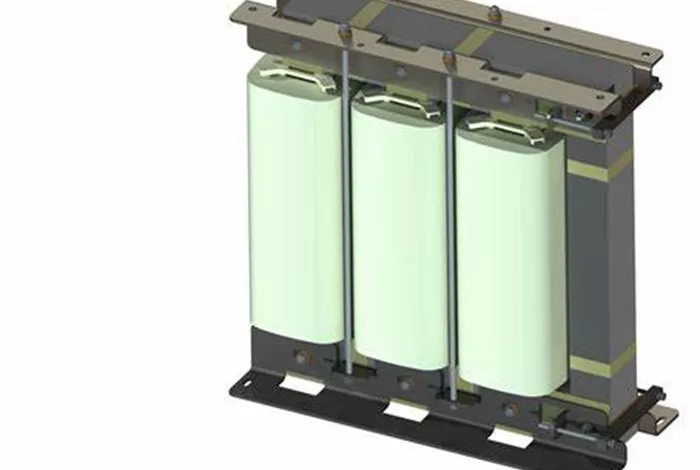

A choke transformer is a specialized electrical component that combines the functions of a traditional transformer with those of an inductor, or choke. It is designed to filter out unwanted high-frequency signals while allowing lower-frequency or direct current (DC) to pass through. This unique combination makes choke transformers highly effective in various applications, particularly in power supplies and signal processing.
Working Principle
The working principle of a choke transformer is based on the fundamental property of inductance. When an alternating current (AC) flows through a coil of wire, it generates a magnetic field around the coil. This magnetic field stores energy and opposes changes in the current flow. This opposition is known as inductive reactance, which increases with frequency.
Inductive Reactance
Inductive reactance (XL) is the key factor that allows a choke transformer to filter out high-frequency signals. The formula for inductive reactance is:
XL=2πfL
where:
- f is the frequency of the current,
- L is the inductance of the coil.
At higher frequencies, the inductive reactance becomes significantly larger, effectively blocking or attenuating the high-frequency components while allowing lower-frequency or DC components to pass through.
Energy Storage and Release
As the AC current passes through the choke, the magnetic field surrounding the coil stores energy. When the current reverses direction, the magnetic field collapses, releasing the stored energy back into the circuit. This energy storage and release mechanism helps maintain a relatively constant current flow and reduces fluctuations in the circuit.
Types and Construction
Choke transformers can be categorized based on their construction and application:
Power Line Chokes
Power line chokes are designed to impede higher frequencies in electrical power transmission systems. They are typically used to filter out noise and unwanted signals from the power supply, ensuring a cleaner and more stable output.
Radio Frequency (RF) Chokes
RF chokes are used in applications such as radio transmitters and receivers. They are designed to block high-frequency signals while allowing lower-frequency signals to pass through. RF chokes often have iron powder or ferrite cores to increase inductance and overall operation.
Common-Mode Chokes
Common-mode chokes are a special type of choke used to suppress electromagnetic interference (EMI) and radio frequency interference (RFI). They consist of two parallel coil windings on a single core, which allow differential currents to pass while blocking common-mode signals.
Applications
Choke transformers are widely used in various electronic and electrical systems due to their ability to filter out high-frequency noise and stabilize current flow. Some of the key applications include:
Power Supplies
In power supplies, choke transformers are used to smooth the ripple voltage in the output of the rectifier stage. This ensures a cleaner DC output, reducing voltage fluctuations and improving the overall performance of the power supply.
Signal Processing
Choke transformers are used in signal processing circuits to filter out unwanted high-frequency components. They help in maintaining signal integrity and reducing noise, which is crucial for high-speed data transmission and sensitive electronic applications.
Electromagnetic Interference (EMI) Reduction
Choke transformers play a vital role in reducing EMI in various devices. By blocking high-frequency signals, they prevent unwanted interference with other sensitive components or nearby electronic devices.
Motor Drives and Industrial Automation
In motor drives and industrial automation systems, choke transformers help manage current spikes and protect sensitive components from voltage surges. They ensure stable current flow, extending the lifespan of equipment.
Advantages
Choke transformers offer several advantages that make them indispensable in many applications:
Filtering and Noise Suppression
Choke transformers are highly effective in filtering out high-frequency noise and unwanted signals, resulting in cleaner power or signal transmission. This improves the overall performance and reliability of electronic circuits.
EMI Reduction
By blocking high-frequency electromagnetic signals, choke transformers help reduce EMI. This is particularly important in environments where EMI can cause malfunctions or disturbances in sensitive components.
Energy Storage
Choke transformers store energy in their magnetic field during the charging phase of an AC signal and release it during the discharge phase. This energy storage capability helps stabilize and smooth out current flow, reducing voltage fluctuations and improving power quality.
Power Factor Correction
Choke transformers are used in power factor correction circuits to enhance the efficiency of electrical systems. By reshaping the current waveform, they reduce reactive power, increase power factor, and minimize energy losses.
Disadvantages
Despite their numerous advantages, choke transformers also have some limitations:
Inductive Voltage Dro
Choke transformers introduce an inductive voltage drop due to their inductive reactance. This voltage drop can affect the performance of the circuit, especially in applications where voltage regulation is critical.
Heat Dissipation
Choke transformers can generate heat due to resistive losses in the wire and core materials. Proper heat dissipation mechanisms are necessary to ensure reliable operation, especially when dealing with high currents or high frequencies.
Cost
Choke transformers can be relatively expensive compared to other passive components, depending on the specific design and application.
Limited Frequency Range
Choke transformers have a limited frequency range where they exhibit high inductive reactance. Beyond this range, their filtering effectiveness diminishes.
Magnetic Interference
Choke transformers, particularly those with iron or ferrite cores, can generate magnetic fields that may interfere with nearby sensitive components. Proper shielding and placement considerations are necessary to minimize such interference.
Conclusion
Choke transformers are essential components in modern electronics and power systems, offering significant benefits in terms of filtering, noise suppression, and EMI reduction. Their ability to block high-frequency signals while allowing lower-frequency or DC components to pass through makes them highly versatile. Understanding the working principles, types, and applications of choke transformers is crucial for engineers and designers working in the field of electronics. With ongoing advancements in materials and technology, choke transformers continue to play a vital role in ensuring the reliability and efficiency of electrical systems.
