Pad mounted transformers are essential components in modern electrical distribution systems. They play a crucial role in stepping down high-voltage electricity to safer, usable levels for residential, commercial, and industrial applications. These transformers are commonly seen in neighborhoods, shopping centers, and industrial parks, housed in protective metal enclosures mounted on concrete pads.
This article explores the functions, design, advantages, and applications of pad mounted transformers in detail.
Overview of Pad Mounted Transformers
A pad mounted transformer is a ground-level electrical device designed to convert high distribution voltages (typically 2.4 kV to 34.5 kV) to lower voltages (120/240 V or 480 V) suitable for end users. Unlike pole-mounted transformers, which are installed overhead, pad mounted transformers are placed on concrete slabs or pads at ground level, making them more accessible for maintenance while maintaining safety.
These transformers are fully enclosed in tamper-proof, weather-resistant steel or aluminum cabinets, protecting internal components from environmental factors and unauthorized access. They are commonly used in underground distribution systems where overhead lines are impractical or aesthetically undesirable.
Key Functions of Pad Mounted Transformers
Voltage transformation
The primary function of a pad mounted transformer is to reduce high incoming voltage from utility distribution lines to lower voltages required by homes and businesses. For example, it may convert 13.8 kV from the distribution grid to 120/240 V for residential use.
Power distribution
These transformers serve as nodal points in electrical networks, distributing stepped-down power to multiple buildings or facilities through underground cables. Their strategic placement ensures efficient power delivery with minimal voltage drop.
System protection
Modern pad mounted transformers incorporate protective devices like fuses, circuit breakers, and surge arresters to safeguard both the transformer and connected equipment from electrical faults, overloads, and lightning strikes.
Load management
By dividing large power loads among multiple transformers, these units help balance electrical demand across neighborhoods and commercial areas, preventing system overloads and improving reliability.
Design and Construction Features
Enclosure and materials
Pad mounted transformers feature robust, corrosion-resistant enclosures typically made of galvanized steel or aluminum. The housing is designed to withstand harsh weather conditions while preventing accidental contact with live components.
Internal components
The core assembly consists of high-grade silicon steel laminations for efficient magnetic flux transfer. Copper or aluminum windings provide the necessary turns ratio for voltage conversion. Modern units use mineral oil or biodegradable ester fluids for cooling and insulation.
Termination systems
These transformers utilize specialized cable termination compartments with elbow connectors or bushing wells for safe, reliable connections to underground distribution cables. The design allows for “live front” or “dead front” configurations depending on safety requirements.
Ventilation and cooling
Proper heat dissipation is achieved through natural convection cooling fins or radiators. Some larger units incorporate forced-air cooling systems for enhanced thermal management under heavy loads.
Advantages Over Other Transformer Types
Enhanced safety
The grounded metal enclosure and underground cable connections significantly reduce electrocution risks compared to overhead systems. The design also minimizes fire hazards in densely populated areas.
Aesthetic benefits
Pad mounted transformers have a lower visual profile than pole-mounted units, making them preferable for residential neighborhoods, parks, and urban developments where aesthetics matter.

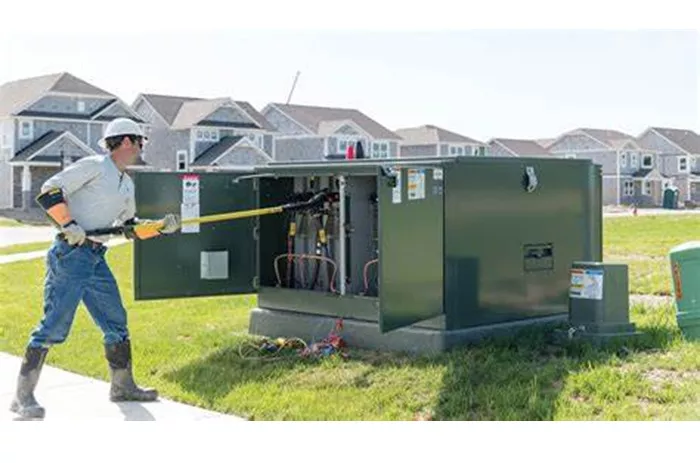

Accessibility for maintenance
Ground-level installation allows technicians to perform inspections, testing, and repairs without requiring bucket trucks or extensive safety equipment.
Space efficiency
These compact units occupy minimal ground space while delivering substantial power capacity, making them ideal for areas with limited real estate availability.
Noise reduction
Modern pad mounted transformers incorporate sound-dampening materials and designs that significantly reduce operational noise compared to older models.
Common Applications
Residential developments
Subdivisions and apartment complexes frequently use pad mounted transformers to distribute power to multiple dwelling units while maintaining neighborhood aesthetics.
Commercial centers
Shopping malls, office parks, and business districts rely on these transformers for their compact footprint and ability to handle diverse electrical loads.
Industrial facilities
Manufacturing plants often employ pad mounted transformers to power heavy machinery while maintaining safe, organized electrical distribution systems.
Municipal installations
Cities use these transformers for street lighting systems, traffic signals, and other public infrastructure requiring reliable power conversion.
Renewable energy integration
Pad mounted transformers play a crucial role in connecting solar farms and wind power installations to the grid by stepping up or down generated voltages as needed.
Installation Considerations
Site preparation
Proper installation begins with a level concrete pad of sufficient size and strength to support the transformer’s weight, typically 4-6 inches thick with steel reinforcement.
Clearance requirements
Electrical codes mandate specific clearance distances (usually 3-10 feet) around the transformer for ventilation, maintenance access, and safety. Landscaping must account for these requirements.
Grounding systems
A robust grounding grid using copper conductors and ground rods is essential for personnel safety and proper surge protection.
Cable routing
Underground conduits must be properly sized and installed to accommodate primary and secondary cables while allowing for future maintenance or upgrades.
Environmental factors
Installation sites should avoid flood-prone areas and provide adequate drainage to prevent water accumulation around the unit.
Maintenance and Troubleshooting
Routine inspections
Regular visual checks for oil leaks, corrosion, vegetation encroachment, and proper ventilation are essential for long-term reliability.
Electrical testing
Periodic measurements of winding resistance, insulation resistance, and turns ratio help identify developing problems before they cause failures.
Oil analysis
For liquid-filled units, regular oil sampling and testing can detect insulation degradation, overheating, or moisture contamination.
Common issues
Typical problems include overheating due to overloads, insulation breakdown from moisture ingress, and connector failures caused by thermal cycling.
Repair vs. replacement
Decisions between repairing a faulty transformer or replacing it depend on factors like age, repair costs, efficiency improvements in newer models, and changing load requirements.
Future Trends in Pad Mounted Transformer Technology
Smart grid integration
Next-generation pad mounted transformers are incorporating sensors and communication modules for real-time monitoring of load, temperature, and power quality.
Improved materials
Advances in amorphous metal cores and high-temperature superconductors promise significant efficiency gains and size reduction.
Eco-friendly designs
Manufacturers are developing units with biodegradable insulating fluids and reduced sound emissions to meet stricter environmental regulations.
Modular configurations
Some new designs allow for easier capacity upgrades by adding or replacing internal modules without replacing the entire unit.
Enhanced safety features
Future models may include arc-resistant designs, advanced fault detection systems, and improved fire suppression capabilities.
Conclusion
Pad mounted transformers serve as the quiet workhorses of modern electrical distribution systems, safely and efficiently delivering power where it’s needed most. Their ground-level installation, protective enclosures, and reliable performance make them indispensable for urban and suburban power networks.
As electrical demands evolve with renewable energy integration and smart grid technologies, pad mounted transformers will continue to adapt, incorporating new materials, monitoring capabilities, and efficiency improvements. Proper selection, installation, and maintenance of these critical components ensure reliable power delivery for homes, businesses, and industries alike.
Understanding their function and importance helps utility professionals, electrical engineers, and facility managers make informed decisions about power distribution system design and operation. With their combination of safety, reliability, and versatility, pad mounted transformers will remain fundamental to electrical infrastructure for decades to come.
