Transformer cores play a critical role in the efficient operation of electrical power systems by providing a controlled path for magnetic flux. The use of laminated cores rather than solid metal blocks represents one of the most important design choices in transformer construction, offering significant advantages in terms of energy efficiency, thermal performance, and operational reliability. This article examines the fundamental reasons behind this design approach and explores the technical considerations that make laminated cores indispensable in modern transformer technology.
Fundamental Principles of Transformer Core Design
The core of a transformer serves as the medium through which magnetic flux passes between the primary and secondary windings, enabling the transfer of electrical energy through electromagnetic induction. When alternating current flows through the primary winding, it generates a constantly changing magnetic field that must pass through the core material with minimal resistance. Solid metal cores would initially appear suitable for this purpose due to their high magnetic permeability, but they present several physical limitations that laminated construction effectively overcomes.

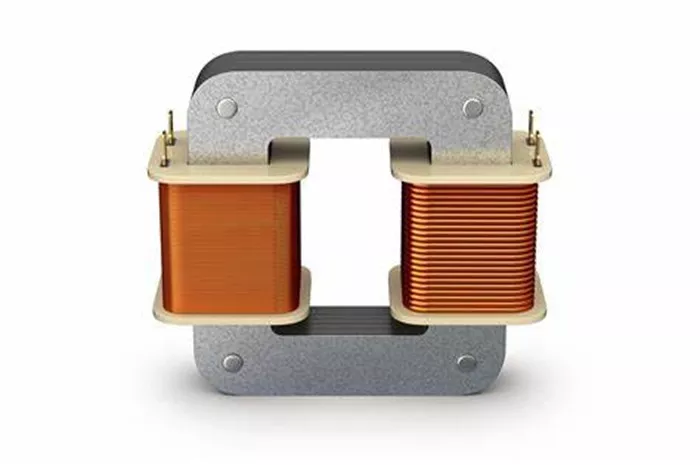

Laminated cores consist of thin sheets of electrical steel stacked together and insulated from one another, typically with a thin coating of varnish or oxide layer. This layered structure disrupts what would otherwise be continuous electrical paths through the core material, dramatically reducing the circulation of eddy currents that form in response to the changing magnetic field. The thickness of these laminations represents a careful balance between minimizing eddy current losses and maintaining practical mechanical strength in the core assembly, with common thicknesses ranging from 0.23 mm to 0.35 mm for power frequency applications 13.
Key Advantages of Laminated Core Construction
Reduction of Eddy Current Losses
Eddy currents represent one of the primary sources of energy loss in transformer operation, generating heat rather than useful magnetic flux. These circulating currents form in any conductive material exposed to a changing magnetic field, with their intensity proportional to the area of the conducting path. By dividing the core into many thin, insulated layers, laminated construction effectively limits the area available for eddy current circulation within each lamination. The insulation between layers forces these currents to remain confined within the narrow cross-section of individual laminations rather than spreading throughout the entire core volume.
The power loss due to eddy currents decreases with the square of lamination thickness, making even small reductions in sheet thickness highly effective for improving efficiency. Modern electrical steels further enhance this effect through alloying elements like silicon that increase electrical resistivity while maintaining favorable magnetic properties. Advanced manufacturing techniques now produce grain-oriented electrical steel with highly directional magnetic characteristics that align with the transformer’s flux path, offering additional improvements in performance 27.
Improvement of Magnetic Flux Conductivity
While reducing unwanted eddy currents, laminated cores must still provide an excellent path for the intended magnetic flux. The silicon steel used in quality laminations offers high magnetic permeability, allowing strong magnetic fields to develop with relatively small magnetizing currents. The grain-oriented variety of this material provides even better performance along the preferred direction of grain alignment, typically corresponding to the main flux path in the transformer core.
Specialized core construction techniques like step lap joints and mitred corners help maintain continuous magnetic paths while minimizing air gaps at joints between core segments. These refined assembly methods reduce the magnetizing current required to establish working flux levels and decrease localized losses at joint interfaces. The precision achievable with modern laser cutting and automated stacking equipment has brought these advanced core designs into widespread use across the transformer industry 17.
Thermal Performance and Cooling Characteristics
The layered structure of laminated cores inherently promotes better heat dissipation compared to solid cores. The small gaps between laminations allow cooling oil or air to penetrate deeper into the core structure, carrying away heat more effectively from internal regions. This improved thermal management helps maintain stable operating temperatures and prevents localized hot spots that could degrade insulation materials or accelerate aging of the core steel.
The distribution of losses across many thin laminations also prevents concentrated heating that would occur with thicker conductive paths. Thermal modeling of transformer cores shows how laminated construction produces more uniform temperature distributions, reducing mechanical stresses caused by uneven thermal expansion. This thermal stability becomes increasingly important in high-power applications where even small improvements in cooling can significantly extend equipment lifespan 38.
Material Considerations for Laminated Cores
Electrical Steel Composition
The magnetic steel used in transformer laminations typically contains 2-3% silicon by weight, which increases electrical resistivity without excessively compromising magnetic properties. This silicon steel, sometimes called transformer steel, forms the industry standard material for most power and distribution transformer cores. The addition of silicon raises resistivity by about four times compared to pure iron, providing substantial reduction in eddy current losses while maintaining adequate mechanical strength for manufacturing and operation.
Modern production methods create grain-oriented electrical steel with highly directional magnetic properties that align the easiest magnetization direction with the designed flux path in the transformer. This crystalline orientation, achieved through specialized rolling and annealing processes, can improve core efficiency by 30% or more compared to non-oriented grades. The magnetic domains in these materials naturally align with the rolling direction, requiring less energy to establish and maintain the working magnetic flux 27.
Insulation and Surface Treatment
The effectiveness of laminated cores depends heavily on the insulation between individual steel sheets. This interlamination insulation must withstand manufacturing processes, transformer assembly, and decades of service under varying thermal and mechanical stresses. Modern core steels receive surface treatments that may include glass-like oxide layers, inorganic coatings, or organic varnishes, each offering specific advantages for different applications and manufacturing methods.
These coatings typically measure just a few micrometers thick, sufficient to electrically separate laminations while minimizing the air gaps that could impede magnetic flux. The insulation systems must maintain their integrity through the punching, cutting, and stacking processes used in core manufacture, as well as resist degradation from transformer oil and elevated operating temperatures. Advanced coating technologies continue to push the boundaries of performance, enabling thinner laminations with better interlaminar resistance 13.
Manufacturing and Assembly Techniques
Precision Stacking Methods
The assembly of laminated cores requires careful attention to the arrangement and orientation of individual laminations to optimize magnetic performance. Traditional stacked cores use either butt-lap or step-lap joint configurations at the corners where core legs meet yokes. Step-lap designs progressively stagger the joints between layers, creating a more continuous magnetic path that reduces flux concentration and localized losses at these critical regions.
Automated stacking systems now achieve remarkable precision in lamination alignment, with some advanced facilities using vision systems and robotic handling to ensure perfect layer registration. These manufacturing advancements have made complex core geometries like wound cores with circular cross-sections practical for high-volume production. The consistency offered by automated stacking also improves quality control and reduces variability in transformer performance 17.
Wound Core Construction
An alternative to traditional stacked laminations, wound cores form continuous magnetic circuits by spirally winding a long strip of electrical steel into the desired core shape. This construction method eliminates joint losses entirely by having no discontinuous air gaps in the flux path, offering the lowest possible magnetizing current and core loss characteristics. The wound core approach works particularly well for smaller distribution transformers and some specialty applications where premium efficiency justifies the more complex manufacturing process.
After winding, the core undergoes stress relief annealing to restore magnetic properties that may have degraded during the forming process. Special cutting techniques then create the necessary openings for winding placement while maintaining as much of the continuous magnetic path as possible. The resulting cores demonstrate exceptionally low no-load losses and quiet operation, though their repair and maintenance can prove more challenging than conventional designs 78.
Specialized Core Designs and Applications
High-Frequency Transformer Cores
While standard laminated cores work well at power frequencies (50/60 Hz), higher frequency applications like switch-mode power supplies require different approaches to core loss management. Ferrite materials become practical alternatives at these elevated frequencies, offering high resistivity that minimizes eddy currents even in solid core forms. For applications where magnetic metals must still be used, extremely thin laminations or powdered metal composites provide viable solutions.
Recent developments have produced laminated metallic magnetic cores capable of operating efficiently into the MHz range, using sequential electrodeposition through lithographic molds to create micron-scale laminations within relatively thick core structures. These innovative designs maintain the benefits of lamination while achieving the compact dimensions required for high-frequency power conversion applications 3.
Amorphous Metal Cores
An emerging alternative to conventional silicon steel laminations, amorphous metal alloys offer dramatically reduced core losses through their unique disordered atomic structure. These materials cool so rapidly from the liquid state that atoms cannot arrange into a regular crystalline lattice, resulting in exceptional magnetic properties including very low hysteresis losses. While challenging to work with due to their brittleness and special processing requirements, amorphous metal cores can reduce no-load losses by 60-70% compared to traditional laminations.
The manufacturing of amorphous metal transformers requires completely different techniques than conventional laminated cores, as the material cannot be punched or cut like electrical steel without damaging its magnetic properties. Special winding and annealing processes have been developed to produce practical transformer cores from these advanced materials, offering tremendous energy savings potential particularly in distribution transformers that operate continuously near their rated flux density 37.
Conclusion
Ongoing research in transformer core materials focuses on pushing the limits of loss reduction while maintaining practical manufacturability and mechanical reliability. Nano-crystalline alloys represent one promising direction, offering core loss characteristics between those of conventional silicon steel and amorphous metals. These materials feature extremely fine grain structures that can be optimized for specific frequency ranges and flux density levels.
Another important development area involves improved coating technologies that provide better interlaminar insulation while withstanding higher operating temperatures. These advanced coatings will enable the use of even thinner laminations without risk of insulation breakdown, further reducing eddy current losses. Some experimental treatments incorporate nanomaterials to enhance both electrical and thermal performance at the lamination interfaces.
Digital manufacturing technologies including laser cutting and robotic stacking continue to transform core production, enabling more complex geometries with tighter tolerances than ever before. These advancements support innovative core designs that minimize losses while optimizing material usage and manufacturing efficiency. As transformer efficiency standards become more stringent worldwide, these improvements in laminated core technology will play a central role in meeting regulatory requirements and reducing global energy consumption .
